Lou is an intuitive blood pressure monitor. The goal was to design a plastic product housing containing internal features commonly used in the design of injection molded parts such as ribs, bosses, snap fits other features, while following standard rules and guidelines for housing part breakup,  mold parting line location, part wall thickness and also consider manufacturability issues such as design for assembly, design for simplicity and design for disassembly. Also, taking into consideration common methods for arranging and retaining internal components within the product housing.
Team
Yukun Zhan
Achi Martin
Victoria Southwick
Brett Akop
Gabriel Vizcarrondo

RENDER

3D PRINTED MODEL

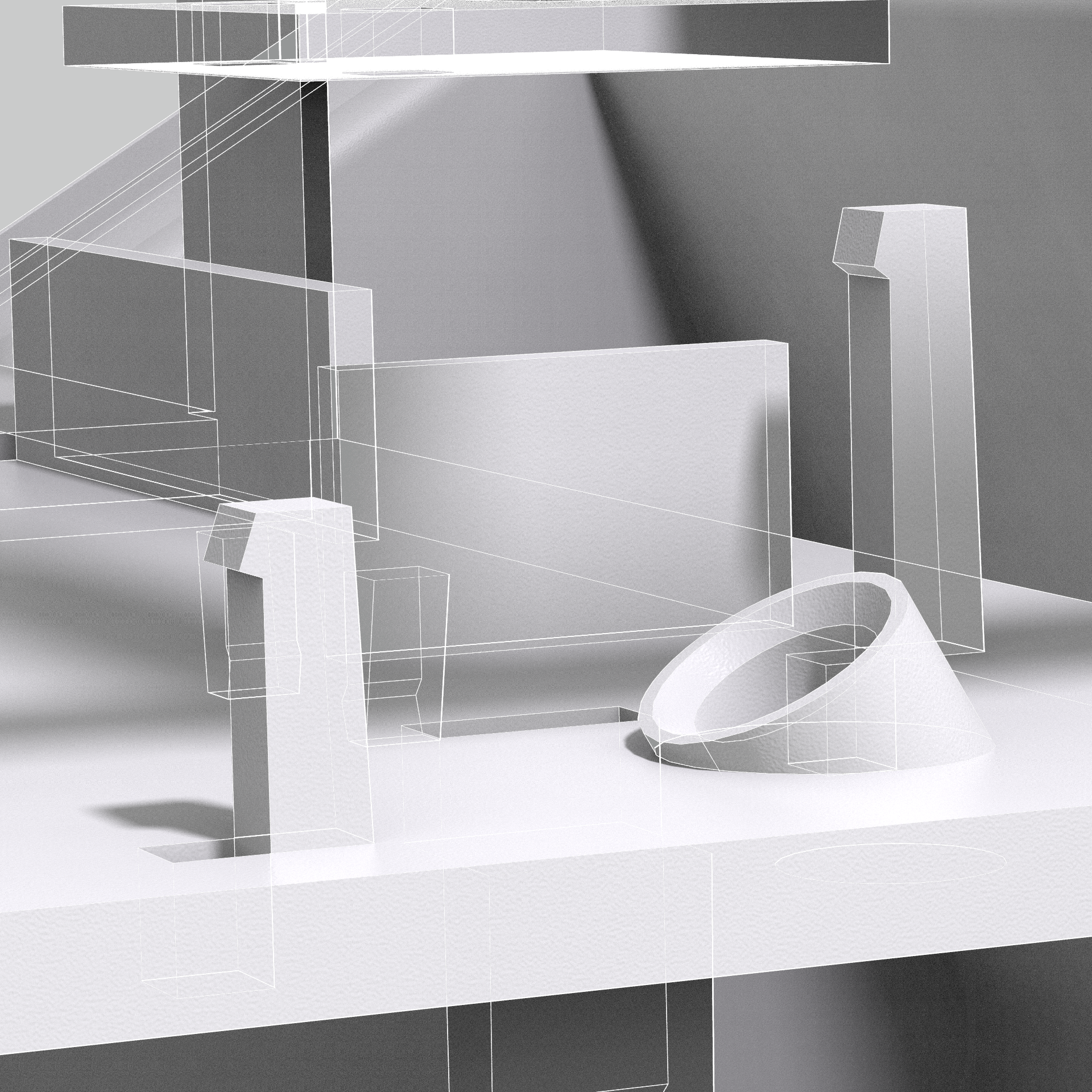

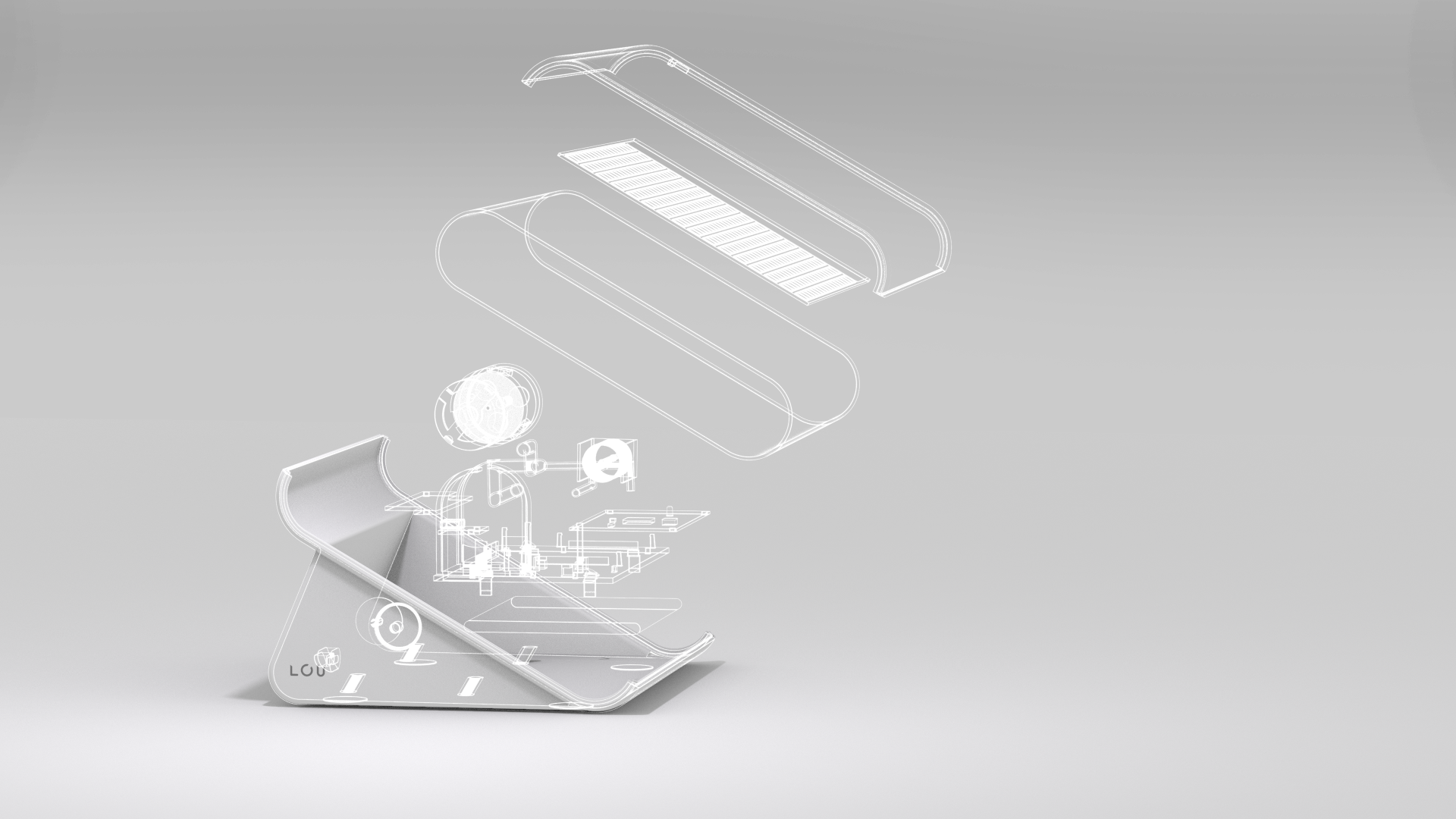

PART BREAKUP

SOFTWARES USED
SOLIDWORKS
KEYSHOT
PHOTOSHOP
ILLUSTRATOR
